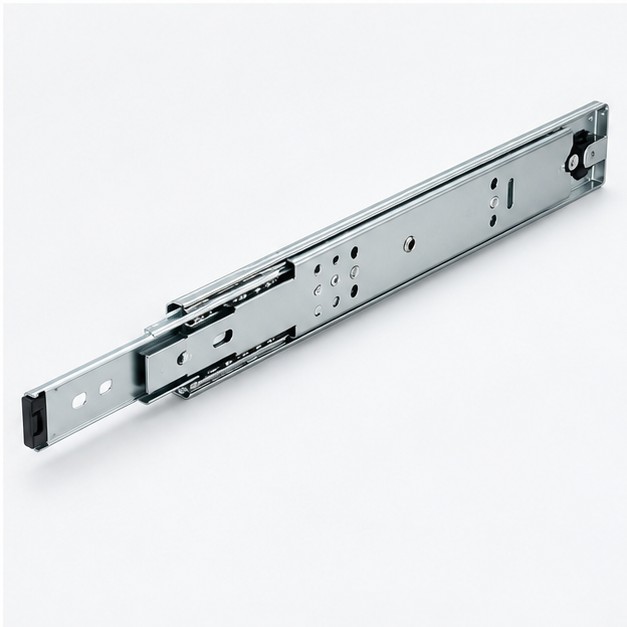

3-Fold Full-Extension Ball-Bearing Drawer Slide
Key Features
- Three-section full extension — drawer opens completely
- Precision steel balls for smooth, silent travel
- 250–600 mm lengths, 35–45 kg load
- Cold-rolled steel, zinc plated or black
- Side-mount construction
- Packed 10 sets per carton
Product Overview
A three-section side-mount slide with full extension and steel-ball movement, built for smooth, repeatable drawer operation in kitchen, furniture and office cabinets. Lengths from 250 to 600 mm carry 35–45 kg, in zinc-plated or black finishes. Tell us drawer length, box height and expected load so we confirm the right length and pairing for your production.
Specifications
| Type | 3-fold side-mount, full extension |
| Length | 250–600 mm |
| Load | 35–45 kg |
| Silent | precision steel balls, smooth glide |
| Finish | zinc plated / black |
| Packing | 10 sets/carton |
Applications
Available Options
- Zinc plated or black finish
- Length range 250–600 mm
- Bulk packing: 10 sets per carton
- Pairing with standard side-mount drawer boxes
Compatibility & Installation
Side-mount installation — the rail fixes to the cabinet side and the drawer side. Provide the drawer length and cabinet depth and we will confirm the matching length and mounting positions.
OEM / ODM
Sizes, finishes, hole patterns and packaging can be customized under your own brand. Send drawings, samples or a target specification for a quotation — see how OEM works.
FAQ
How do I choose the length?
+
Match the slide to the nominal drawer length within 250–600 mm and confirm cabinet depth; we verify against your drawer drawing.
What load can it carry?
+
35–45 kg depending on length and configuration; tell us the load and usage frequency.
Is full extension enough for kitchen drawers?
+
Yes — full extension opens the drawer completely for access to the back; for soft-close or push-to-open series, see the corresponding slide pages.
What finishes are available?
+
Zinc plated and black are standard; confirm with your order.
