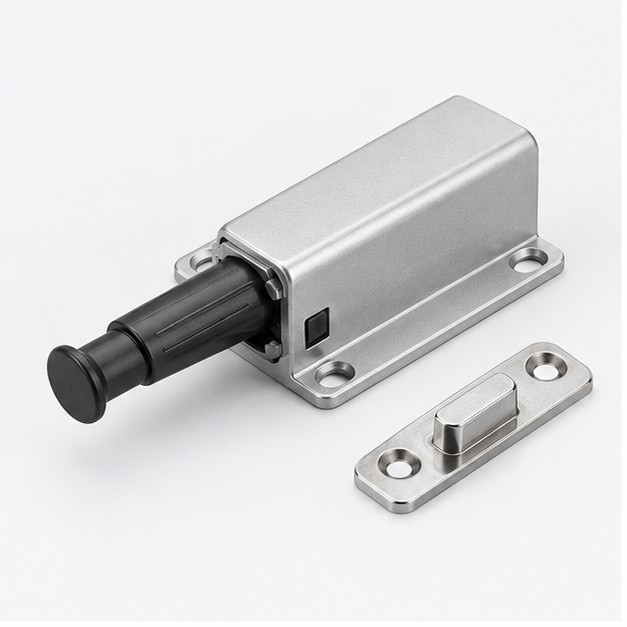

Adjustable Push-to-Open Cabinet Latch — 30–50 N
Key Features
- Release force adjustable 30–50 N
- Aluminum housing with ABS and spring mechanism
- Clip-on or screw-fixed mounting
- Repeatable press-and-release action
- Magnetic option where confirmed
Product Overview
An adjustable push-to-open latch for handleless cabinet and wardrobe doors. The aluminum housing with ABS and spring mechanism gives a repeatable press-and-release action, adjustable between 30 and 50 N to suit the door. Clip-on and screw-fixed versions are available, and a magnetic option can be quoted where applicable. Tell us the door size and weight — we confirm the force setting and mounting for your cabinet.
Specifications
| Type | push-to-open latch |
| Material | aluminum housing / ABS + spring |
| Force | 30–50 N adjustable |
| Use | cabinets & wardrobes without handles |
| Mounting | clip-on / screw; magnetic option |
| Packing | 200 pcs/carton |
Applications
Available Options
- Force: 30–50 N adjustable
- Clip-on or screw-fixed mounting
- Magnetic option where confirmed
Compatibility & Installation
Mount to the cabinet per the latch type; set the force against the actual door, then lock the position.
OEM / ODM
Sizes, finishes, hole patterns and packaging can be customized under your own brand. Send drawings, samples or a target specification for a quotation — see how OEM works.
FAQ
How do I set the release force?
+
Adjust between 30–50 N and test against the actual door weight; start lower and increase until release is reliable.
Which mounting fits my cabinet?
+
Clip-on and screw-fixed versions are available — confirm the cabinet construction when ordering.
Is a magnetic version available?
+
Yes, where confirmed for your application; ask for a quotation.
Is it only for handleless doors?
+
It is primarily for handleless fronts, but it also suits any door needing a press-to-open action.
