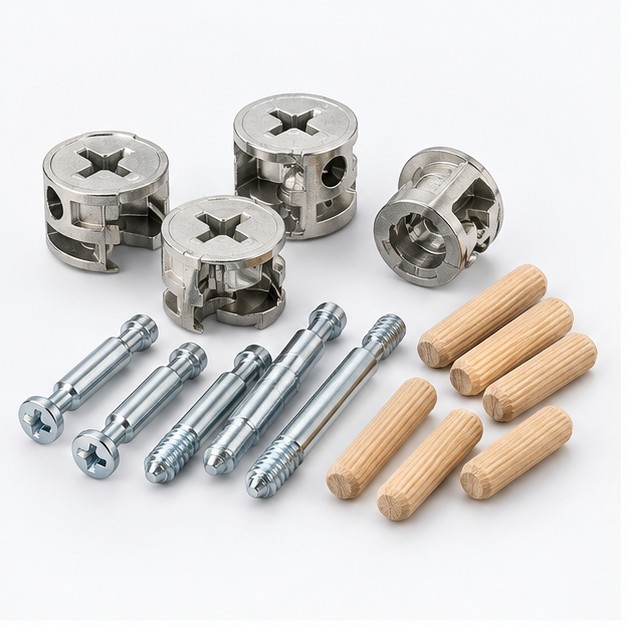

Cam Lock & Dowel Set for RTA / Flat-Pack Furniture
Key Features
- 3-in-1 set: cam + bolt + dowel
- Cams 15×12 / 15×15 mm
- Bolts M6×34 / M6×50; dowels 6×30 mm
- Zinc alloy cam, steel bolt and dowel
- Nickel plated finish
- Packed 100 sets per bag
Product Overview
A cam-lock and dowel connector set for knock-down and flat-pack furniture assembly, combining a zinc-alloy cam, steel bolt and dowel for repeatable panel joining. Standard configurations cover cams 15×12/15×15, bolts M6×34/M6×50 and 6×30 dowels, nickel plated, packed 100 sets per bag. Confirm board thickness and panel layout so we match the set to your drilling pattern.
Specifications
| Cam | 15×12 / 15×15 mm |
| Bolt | M6×34 / M6×50 mm |
| Dowel | 6×30 mm |
| Material | zinc alloy / steel |
| Finish | nickel plated |
| Packing | 100 sets/bag |
Applications
Available Options
- Cam: 15×12 or 15×15 mm
- Bolt: M6×34 or M6×50 mm
- Packing: 100 sets per bag
- Components also supplied separately
Compatibility & Installation
Standard assembly: the bolt anchors into the first panel, the cam seats in the second; a 15 mm cam bore and matching dowel holes are required. Share your boring pattern for confirmation.
OEM / ODM
Sizes, finishes, hole patterns and packaging can be customized under your own brand. Send drawings, samples or a target specification for a quotation — see how OEM works.
FAQ
Which set fits my board thickness?
+
It depends on the panel thickness and bore pattern — send your drilling drawing and we confirm cam and bolt sizes.
Are components available separately?
+
Yes — cams, bolts and dowels can be supplied separately or as sets.
What is the packing?
+
100 sets per bag as standard; retail packing on request.
Is the finish consistent?
+
Nickel plated as standard; confirm appearance requirements with your order.
